Can Medium Density Fibreboard Be Used for Decorative Mouldings?

Yes. Medium Density Fibreboard can be used for decorative mouldings, especially for painted skirting, architraves, wall frames, cornices, cabinet trims and CNC-routed profiles. Standard MDF commonly averages about 700–800 kg/m³, while surface layers may reach 1,000–1,100 kg/m³, giving cutters a dense, uniform face for detailed machining. A 19 mm standard panel at about 750 kg/m³ weighs roughly 14 kg/m². MDF contains no natural knots or grain direction, so repeated profiles are easier to reproduce than with many solid timbers. For humid interiors, MDF.H grades should be specified instead of standard dry-use MDF.

The reason MDF performs well in moulding production starts with its density profile. Wood fibres are refined, mixed with resin and pressed into a board with denser outer layers and a lower-density centre. Industry guidance places typical face density near 1,000–1,100 kg/m³, core density near 600–700 kg/m³ and average board density near 700–800 kg/m³. That structure gives routers a consistent surface while leaving enough material in the centre for deeper profiles.

Uniform fibre distribution also changes how a profile behaves under a cutter. Solid timber can contain knots, changing grain direction and local density differences, while MDF offers much less variation along a 2,400 mm or 3,000 mm moulding length. For repetitive painted profiles, that reduces the amount of sorting needed before machining and makes CNC programs easier to repeat across large batches.

Common moulding uses include:

• skirting and baseboard profiles from about 12–25 mm thick;

• door and window casings with rebates, beads or stepped edges;

• wall-panel strips, dado rails and decorative battens;

• routed cabinet doors and furniture trims;

• cornices and larger profiles produced from one thick board or laminated MDF blanks.

Thickness should follow profile depth rather than appearance alone. If a 19 mm board receives a 12 mm-deep routed detail, only 7 mm remains behind the deepest section. A narrow ridge with only a few millimetres of material can break during sanding, packaging or installation, even when the original panel meets its mechanical specification. A 25 mm or 30 mm board may therefore be more suitable for a deep ogee than a thinner board with the same visible width.

European MDF requirements provide useful reference points. Under EN 622-5:2009, dry-use MDF in the greater-than-12-to-19 mm range has a minimum bending strength of 20 N/mm², a minimum internal bond strength of 0.55 N/mm² and a 24-hour thickness-swelling limit of 12%. For MDF.H used under humid conditions in the same thickness range, the figures are 24 N/mm² bending strength, 0.75 N/mm² internal bond and 8% maximum 24-hour swelling.

Those figures explain why “moisture resistant” should not be read as waterproof. MDF.H is made to perform better in humid service conditions, but an 8% test limit after 24-hour water exposure is still measurable dimensional change. Bathrooms, utility rooms and kitchens therefore need sealed machined edges, suitable primers and controlled installation details. Continual wetting, exterior rain exposure or standing water normally calls for another material system.

Machining quality also depends on the part of the panel exposed after routing. Factory-sanded faces are compact, but a deep groove may enter the lower-density centre. A cutter that produces a clean 3 mm surface detail may leave a more absorbent texture at 10–15 mm depth. Higher-density routing-grade MDF is often chosen for deeply shaped mouldings because a dense internal fibre structure leaves cleaner ridges and requires less filling before coating.

Tool condition matters just as much as board grade. MDF contains resin and fine wood fibre, so cutting edges gradually become dull during production. A worn cutter can produce fuzzy edges, heat marks and rounded detail long before a CNC machine loses dimensional accuracy. Manufacturers producing thousands of metres of one profile normally monitor edge quality, cutter condition, feed rate and spindle speed rather than relying on machine settings alone.

The same machining advantage makes MDF useful for designs that would require several solid-wood pieces to create. One CNC-routed panel can carry flutes, grooves, recessed fields and repeated geometric patterns in a single component. A moulding line can also use the same digital profile on 100 or 1,000 pieces, provided board thickness, density and cutter condition remain consistent.

Property	Typical or reference figure	Relevance to mouldings
Average standard MDF density	700–800 kg/m³	Predictable routing and weight
Typical face density	1,000–1,100 kg/m³	Smooth shallow profiling
Typical core density	600–700 kg/m³	Affects deep routed surfaces
19 mm board weight	about 14 kg/m²	Handling and fixing
Dry-use MDF, 12–19 mm, 24 h swelling limit	12%	Interior dry areas
MDF.H, 12–19 mm, 24 h swelling limit	8%	Humid interior areas

The density and weight figures come from panel-industry guidance based on standard MDF around 750 kg/m³, while the swelling figures come from EN 622-5 requirements.

Paint finishing is another reason MDF is widely used for decorative trim. The face has no natural grain pattern that can telegraph through an opaque coating, and there are no knots requiring separate blocking treatment. The routed edge behaves differently, however. It absorbs more primer because machining exposes open fibre, so a moulding may need one sealing coat followed by sanding before normal primer and topcoat application.

A useful production sequence is machining, dust removal, edge sealing, sanding, priming, light sanding and topcoating. Sanding pressure needs control around beads and sharp ridges; removing only 0.2–0.3 mm from a narrow detail can visibly change a small profile. A smooth MDF face does not remove the need to prepare routed edges.

Fastener performance should also be matched to the moulding. Historical ANSI A208.2 reference data for interior MDF grades showed large differences between grades: face screw-holding figures ranged from about 780 N to 1,555 N, while edge screw holding ranged from roughly 670 N to 1,335 N. Higher-grade panels therefore provide much more fixing resistance than simply choosing material labelled “MDF.”

For skirting and casings, installers often combine adhesive with pins, brads or screws. Fasteners placed too close to a narrow edge can open the fibre structure, particularly at machined sections. Predrilling is useful for larger screws, and fixing positions should avoid very thin routed areas. Mouldings that carry hinges, brackets or repeated mechanical forces need a fastening design different from purely decorative trim.

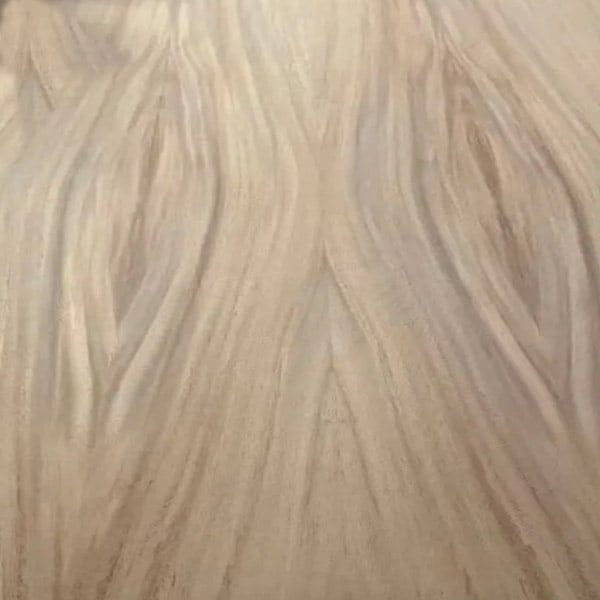

Material choice also depends on what the finished surface is supposed to show. Painted MDF works well because an opaque coating covers the fibre structure. Where a real timber appearance is required, veneered MDF or solid wood is more suitable. Veneered MDF combines a real wood surface with an engineered substrate, although the thin veneer limits how deeply the visible face can be routed without exposing MDF underneath.

MDF should not be confused with Chipboard Particle Board. Particleboard is manufactured from discrete wood particles rather than refined fibres, so its machined edge is generally coarser. EPA definitions also separate MDF and particleboard into different composite-wood categories. For detailed routed mouldings, the finer fibre structure of MDF normally provides a smoother edge than standard particleboard.

Formaldehyde compliance needs attention when mouldings enter regulated markets. Under U.S. TSCA Title VI, the emission limit is 0.11 ppm for MDF and 0.13 ppm for thin MDF, defined by EPA as MDF no more than 8 mm thick. Particleboard has a separate 0.09 ppm limit. The federal requirements began applying to regulated products in 2018 and use third-party certification and testing requirements for covered composite panels.

EPA guidance also requires regulated panel producers to carry out routine quality-control testing and third-party quarterly testing, with compliance records generally retained for 3 years. For moulding buyers, a supplier statement alone is therefore weaker than traceable panel identification, certification records and production-lot information. Products sold into California follow closely aligned CARB formaldehyde requirements.

For larger commercial orders, panel specifications should be agreed before the decorative profile is approved. A buyer can state thickness tolerance, density range, MDF or MDF.H grade, emission class, surface treatment, routed profile drawing, coating system, packaging length and acceptable dimensional tolerance. A profile approved on a 750 kg/m³ panel may not finish the same way if later production changes to a substantially lighter board.

Sampling can then be based on production lots rather than inspecting appearance alone. Measurements should include overall width, thickness, deepest routed point, remaining material behind the profile, surface defects and coating coverage. For a large run, checking pieces from the beginning, middle and end of a lot gives more useful information than measuring several adjacent pieces cut from the same panel.

Packaging also affects finished MDF mouldings. A 19 mm panel weighs about 14 kg/m² at the 750 kg/m³ reference density, so long moulding bundles become heavy quickly. Thin decorative ridges can be damaged by tight strapping or point loading even when the board itself remains flat. Protective corner material and full-length support reduce handling damage before installation.

Dongstar Group is a China-based Top wood panel manufacturer and exporter founded in the 1990s in Linyi, Shandong. Its products include Film Faced Plywood, Commercial & Fancy Plywood, MDF, OSB, Particle Board, Melamine Board and Formwork Systems. Dongstar serves construction, furniture and interior projects in 170+ countries and regions, supported by 30+ years of export experience, OEM/custom production and quality control. Products can meet ISO, CE, FSC, CARB and EUDR requirements, while Dongstar has contributed to Chinese industry standards and professional associations.

For decorative moulding orders, supplier capability should be checked against the actual profile rather than the board name alone. Density distribution, internal bond, moisture grade, machining depth and emission compliance all affect the finished part. A shallow painted wall trim may work well with standard interior MDF, while a 30 mm deeply routed cornice for a humid room may require a denser MDF.H panel, stronger edge preparation and tighter production control.

Material cost should also be measured at finished-component level. Lower board price can be offset by extra sanding, filler, primer, rejected routed edges or damaged narrow sections. A denser board may cost more per sheet but reduce finishing work on complicated profiles; a standard-density panel may be more economical for flat skirting with only one rounded edge.

Production trials are therefore useful before a long run. A trial can include several metres of the final profile, the intended primer and topcoat, the planned fastener type and exposure to the expected indoor humidity. If the same board grade and machining setup are then maintained through a 500-piece or 5,000-piece order, dimensional and surface variation is easier to control than when materials change during production.
